Optomechanics - Mount

Black anodized aluminum hoder for crystal, waveplate, cube beamsplitter, lens; Temperature stabilized oven and more.

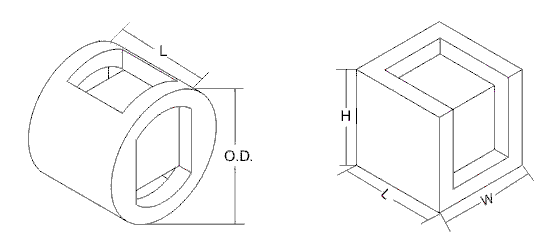

Beamsplitter Cube Holder

1.a Cube Beamsplitter Holder - Round Shape

Qty Item# O.D. x L Cube Size Price*
MCB2010 Φ25.4 x 20mm 10x10x10mm $18
MCB2012 Φ25.4 x 20mm 12.7x12.7x12.7 $18
MCB2015 Φ25.4 x 25mm 15x15x15mm $18
MCB2020 Φ25.4 x 30mm 20x20x20mm $18
MCB2025 Φ25.4 x 38mm 25.4x25.4x25.4 $18

1.b Cube Beamsplitter Holder - Quadrate Shape

Qty Item# W x H x L Cube Size Price*
MCB1010 25.4x25.4x25.4mm 10x10x10mm $18
MCB1012 25.4x25.4x25.4mm 12.7x12.7x12.7 $18
MCB1015 25.4x25.4x25.4mm 15x15x15mm $18
MCB1020 30x30x30mm 20x20x20mm $18
MCB1025 38x38x38mm 25.4x25.4x25.4 $18

2. Waveplate/Thin Plate Ring Holder

Black anodized aluminum hoder for optical thin plate such as waveplate, BBO crystal, etc. thickness from 0.1mm to 2mm.

Qty Item# O.D. I.D. C.A. Thick Price*
WH1508 Φ15.0 Φ8.0 7.0 6 mm $18
WH2508 Φ25.4 Φ8.0 7.0 6 mm $18
WH2510 Φ25.4 Φ10.0 9.0 6 mm $18
WH2512 Φ25.4 Φ12.7 11.5 6 mm $18
WH2515 Φ25.4 Φ15.0 13.5 6 mm $18
WH2520 Φ25.4 Φ20.0 18.0 6 mm $18
WH3025 Φ30.0 Φ25.4 22.8 6 mm $18

3. Lens/Thick Plate Ring Holder

Black anodized aluminum hoder for thick plate such as lens, window, BBO crystal, etc. thickness from 1mm to 7mm.

Qty Item# O.D. I.D. C.A. Thick Price*
RH1206 Φ12.7 Φ6.0 5.0 9 mm $18
RH1207 Φ12.7 Φ7.0 6.0 9 mm $18
RH1208 Φ12.7 Φ8.0 7.0 9 mm $18
RH2506 Φ25.4 Φ6.0 5.0 9 mm $18
RH2508 Φ25.4 Φ8.0 7.0 9 mm $18
RH2509 Φ25.4 Φ9.0 8.0 9 mm $18
RH2510 Φ25.4 Φ10.0 9.0 9 mm $18
RH2512 Φ25.4 Φ12.7 11.5 9 mm $18
RH2515 Φ25.4 Φ15.0 13.5 9 mm $18
RH2520 Φ25.4 Φ20.0 18.5 9 mm $18

4. Crystal/Slab Holder

Black anodized Aluminum hoder for slab crystal such as LBO, BBO, RTP crystal, etc. thickness from 5mm to 25mm, crystal size from 3x3mm to 10x10mm.

Qty Item# O.D. I.D. Thick Price*
CH2503 Φ25.4 3 x 3 9.5 mm $18
CH2503L Φ25.4 3 x 3 25 mm $25
CH2504 Φ25.4 4 x 4 9.5 mm $18
CH2504L Φ25.4 4 x 4 25 mm $25
CH2505 Φ25.4 5 x 5 9.5 mm $18
CH2505L Φ25.4 5 x 5 25 mm $18
CH2507 Φ25.4 7 x 7 9.5 mm $18
CH2507L Φ25.4 7 x 7 25 mm $25
CH2508 Φ25.4 8 x 8 9.5 mm $18
CH2508L Φ25.4 8 x 8 25 mm $25
CH2509 Φ25.4 9 x 9 15 mm $18
CH2509L Φ25.4 9 x 9 25 mm $25
CH2510 Φ25.4 10 x 10 15 mm $18
CH2510L Φ25.4 10 x 10 25 mm $25

Crystal Oven

5. Temperature Stabilized Crystal Mount

Temperature stabilized crystal mount for improving crystal performance, keeping moisture away, NCPM, tempaerture compensation, etc. crystal size from 3x3mm to 10x10mm. Temperature range from room ambient to 200°C, stability +/-0.1°C.

Economy temperature stabilized lens tube, ring holder for Φ1/2" and Φ1" optics. Temperature range from 40°C to 120°C.

Qty Item# O.D. CrystalSize Length Price*
VNT10 Φ10 Call
VNT12 Φ12.7 Call
VNT20 Φ20 Call
VNT25 Φ25.4 Call
VNT45 Φ45 Call
VNT00 Custom Call
